- Stainless steel transmission structure with a Stylish and elegant appearance.
- Adopt a patented sealed capsule driving unit instead of a motor, more stable and durable.
- Keyless, touch keyboard door, the recognition rate of 99.999%
- Freely change handle direction(Free handle).
- Easy to install and change batteries easily.
- User deleted individually, more convenient and safe.
- ANSI Grade2 / CE certified.
- Keypad Shutdown: 10s if a code is wrongly input 3 times.
- Suitable for villas and apartment doors, security doors and wooden doors, etc.
- Material: Zinc Alloy, Stainless Steel
- Color: Bronze
- Key Tags Color: Random
- Standard Mortise: Single Latch
- Standard Backset: 2 3/8"
- Ways to Unlock: Card, Code, or Override Key
- Locking Method: Automatic
- Rejection rate :≤ 0.01%
- Recognition false rate :≤ 0.0001%
- Verify match time:<1 second
- Matching mode: 1: N
- Dynamic Power Consumption: 150-300mA
- Static Power Consumption :< 30µA
- Working Temperature: 0 to 70 ° C
- Working Humidity: ≤80%
- Power Supply: 4X1.5v AA Alkaline Batteries (Not included)
- The user Manual and Full Specifications are available here
- If the User Manual didn't come with the package, please feel free to contact us! We will always be here till the problem is solved!
Open the door
- Approach an effective card to the induction area, motor work after 1 beep, blue light on. Lock open. The lock will lock automatically if detected the action of the door opens. It doesn’t,3 seconds later, the blue light is off, and the door will lock automatically.
2, manage password
- Input manage password,1 beep, motor work, blue light on, door open. The lock will lock automatically if detected the action of the door opens. It doesn’t, 5 seconds later, the blue light is off, and the door will lock automatically.
3, guest password
- Press the KEY button after inputting the password,1 beep, motor work, blue light on, door open. The lock will lock automatically if detected the action of the door opens. It doesn’t,5 seconds later, the blue light is off, and the door will lock automatically.
- You can use the key to open the lock anytime.
Remark: the keypad will be locked for 5 minutes after 5 times wrong inputting.
- A, if the password is invalid, after 3 short beeps, the red light is on.
- B, if the power is low, there will be 5 continuous beeps, red light is on. To guarantee normal use, please change the battery after hearing the alarm.
- C, there will be 5 continuous beeps and the red light
will be on when the battery is low voltage. Please change the battery in
time. After the first alarm, the lock can open about 200 times.

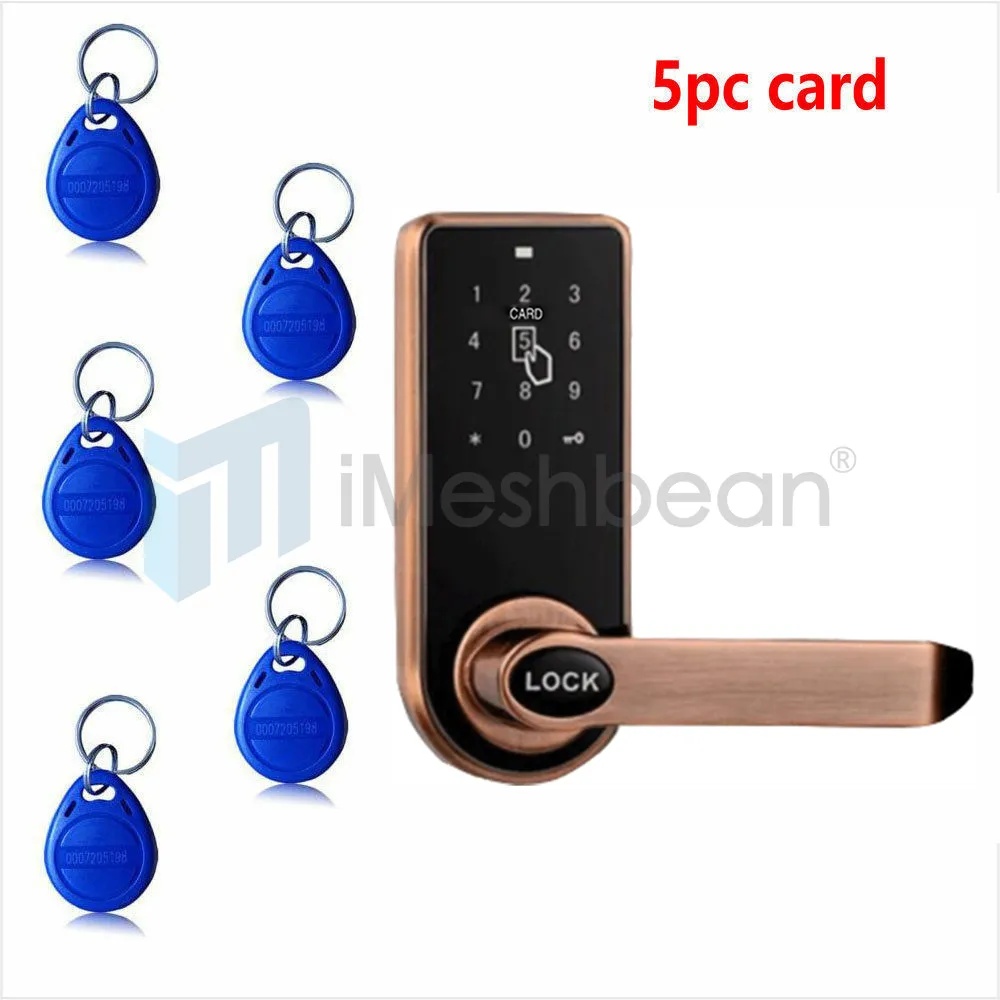

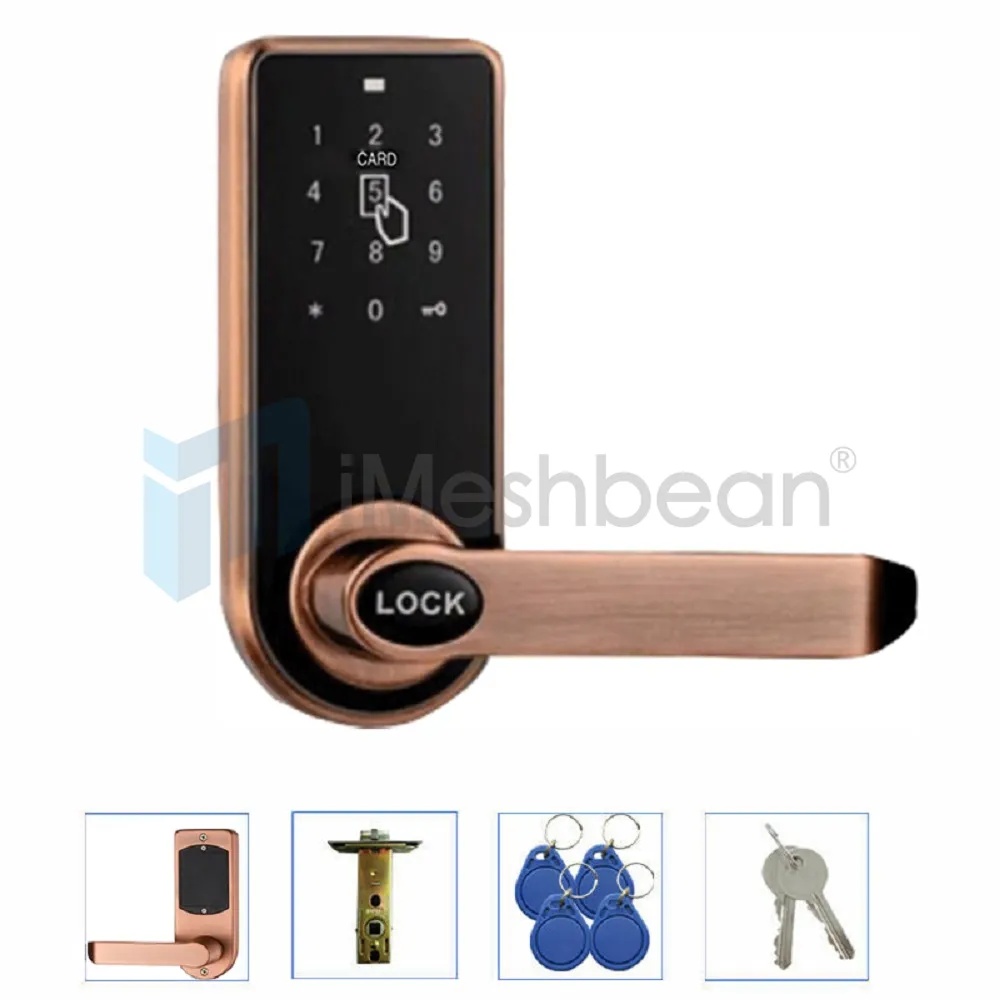

- 1 x Smart Code Door Lock(Contains all accessories）
- 5 x Key Tags
