- Motor: 1/2HP
- Voltage: 110-120V/60Hz
- Max Flow: 25GPM
- Max Head: 150 FT
- Power Cable: 33 FT w/US plug

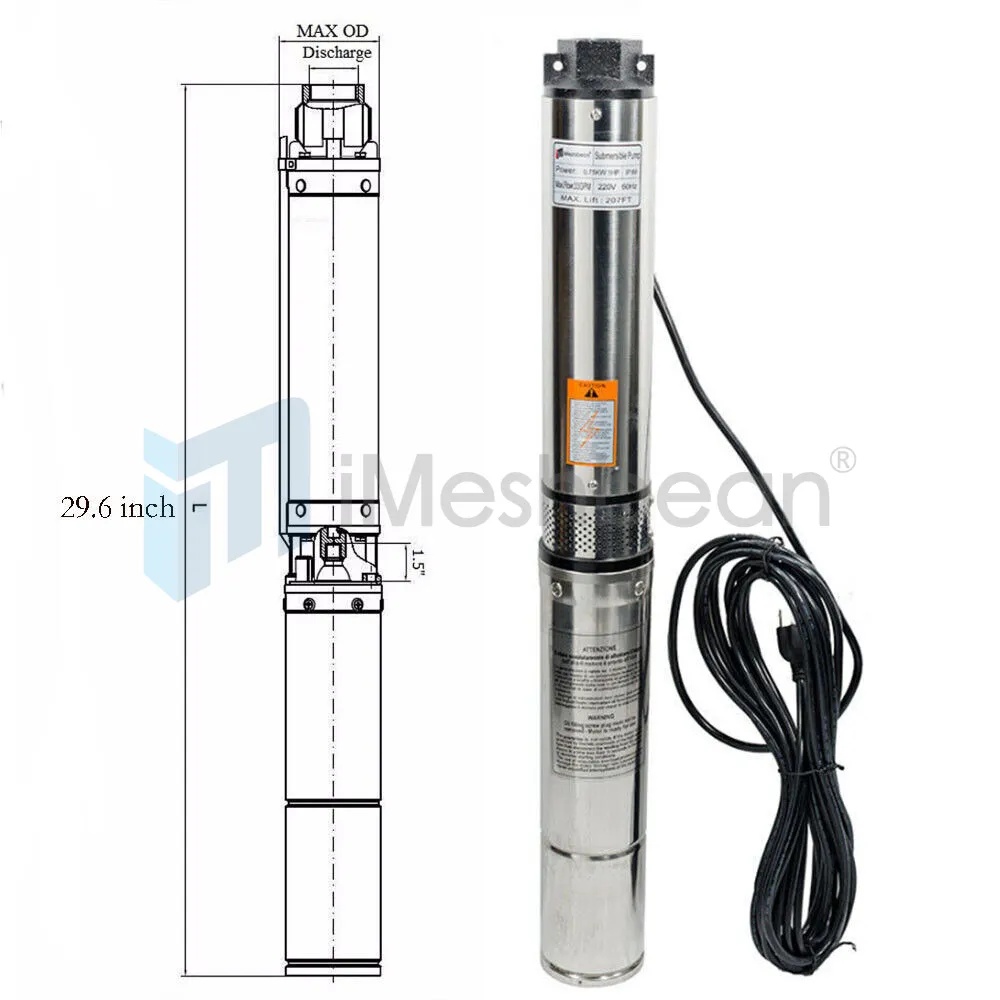

- Pump Diameter: 4 in
- Phase: Single
- Rev: 3420RPM
- Internal Thread Diameter: 1 1/4"
- Material: 304 Stainless Steel, Cast iron
- Water temperature: 32 ~113℉
- Maximum Sand Content：0.25%
- Number of Impeller：6
- Protection Grade: IP58
- Water PH：6.5-8.5
Features Technical Specifications:
- 4" Well Diameter - 4" deep well submersible pump fits in the 4" well casing, Ideal for use with 4" I.D. or larger wells
- Stable and Remarkable Performance- 150ft max head, 25GPM Max flow, impellers to provide stable and remarkable performance
- Industrial Grade Material - Shell, motor shafts are made with stainless steel to ensure corrosion resistance. High-quality sealed ball bearings guarantee its excellent performance. Industrial grade heavy duty, also good for home usage
- This pump lasts much longer than the all-plastic-bottom-suction pump, which weighs half of this pump (same HP).
- High Efficiency - High efficiency, the hermetically sealed motor is thermally protected to prevent overheating and uses less energy
- High-Class Flow Rate - Class-leading flow rate
- Heavy Duty - Heavy-duty thermoplastic impellers, diffusers, and intake screen, Highest quality 304-grade stainless-steel housing
- Brass Fitting - Brass inlets and outlets
- Built-In Suction Screen - Helps to prevent debris from clogging impellers
- This pump has a built-in check valve.
- Thermal Protector - To protect the motor against overheating
- 2-Wire Setup - This Is A 2 Wire Pump With 3-Wires (2 Wires & Ground Wire)
- Includes Control Box - Eliminates confusion for control box selection
- Hardwire is required
- Unique design reduces its noise.
- 1 x pump
- 1 x 33' long electric cord with 110v US plug
- 1 x outlet adapter
- 1 x Manual
For using a pressure tank - Max water level VS. pressure switch settings:
- Pressure switch set @ 20/40 psi: 45 feet (max static water level)
- Pressure switch set @ 30/50 psi: 25 feet (max static water level)
- Pressure switch set @ 40/60 psi: 2 feet (max static water level)
