2 Axis Digital Readout with 2pcs Precision Linear Scale Travel for Milling Lathe Machine
Important Notice:
- Please check the interface illustration carefully if the items are used on your existing or other intentional digital readout or scales, they may be unmatched.
- Scale length refers to the real travel of the linear scale. The actual physical length is 141mm longer than travel. That is the total length=travel length+141mm. One inch equals 25.4mm. please leave us a note of which size scales you need and advise if they are travel length or actual physical length, or we will send you at random.
- Please tell us the Scales you need, you can leave a note on your order, or contact us directly.
- We still have 100mm, 150mm, 350mm, 400mm, 450mm, 500mm, 550mm, 600mm, 650mm, 700mm, 800mm, 850mm, and 1000mm scales in stock. We can ship the packages out in 1 business day if everything is confirmed.
Item description:
- 1.This item Includes 1pc 2 Axis DRO Digital Readout + 2pc Scales, we have 100mm 150mm 200mm 250mm 300mm 350mm 400mm 450mm 500mm 550mm 600mm 650mm 700mm 750mm 800mm 850mm 900mm 950mm 1000mm scales,
- 2. Please leave us a note of which size scales you need and advise if they are travel length or actual physical length, or we will send you at random.
- The scale length above refers to the real travel of the linear scale. The actual physical length is 141mm longer than travel. That is the total length=travel length+141mm. One inch equals 25.4mm.
- Please check the interface illustration carefully if the items are used on your existing or other intentional digital readout or scales, they may be unmatched.
DRO description:

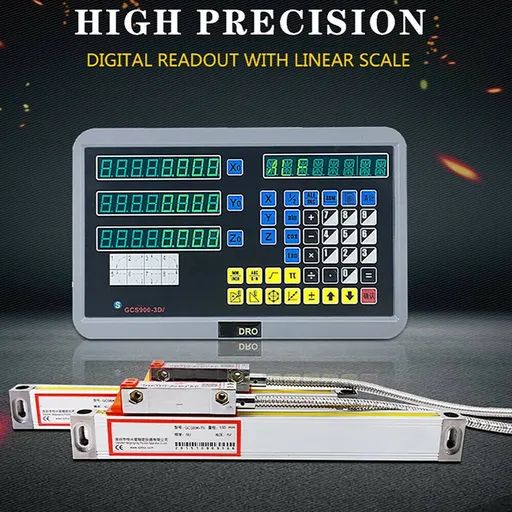

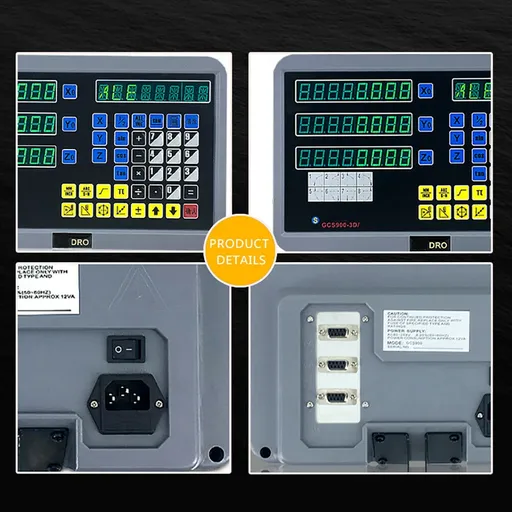

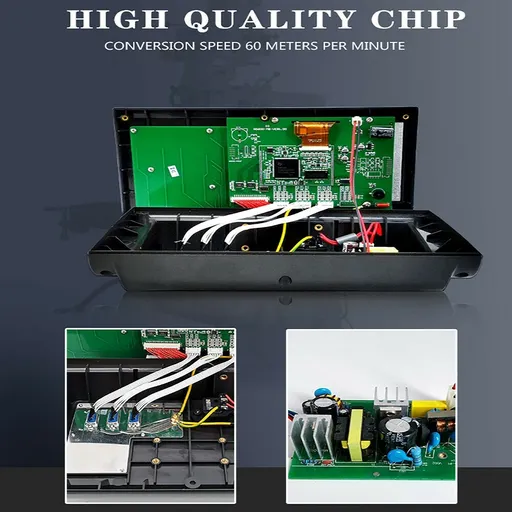

The digital readout(DRO) in the GCS series which is produced by our company is a high-precision instrument that can be used on the lathe, grinding machine, milling machine, boring machine, and EMD TO make position detection.
Basic functions
- zero clearing
- reset
- mm/inch mode
- ABS/INC coordinates conversion
- 200sets sub datum
- power off Memory;
- center of1/2
- liner error compensation
- sleeping mode
- Clear 200 sets Sdm datum;
- ABS/INC mode
- calculator
- drilling of circumference
- drilling of the oblique line
- machining of the inclined plane
- machining of the circular arc
- lathe function(match)
- Rectangular lumen gradual processing
- digital filtering
- R function 21 R/D function
- Radius/Diameter function (lathe machine )
- Z+Y sum (lathe machine)
In total, it is a multifunctional 2-axis DRO that can be used on lathe machines, mill machines, and other machines.
Technical parameters:
- Voltage Range: AC 85V~260V/50HZ~60HZ
- Power Consumption: 25VA
- Coordinates: 1/2/3/4
- Display: 8 digits display
- Input Signal: TTL square wave EIA-442
- Input Signal frequency: 100KHZ
- Length resolution: 5um
- Operation Keyboard: pressure-sensitive keypad

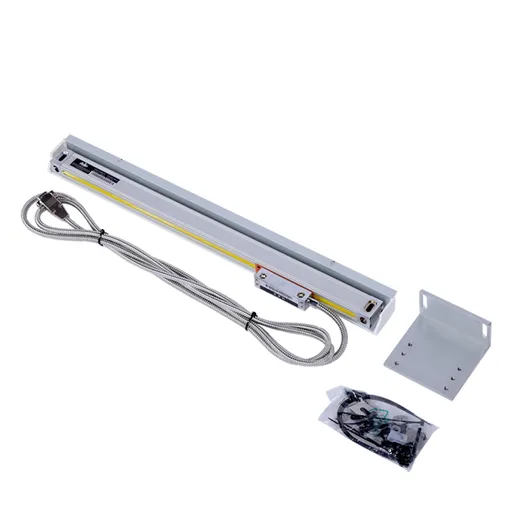

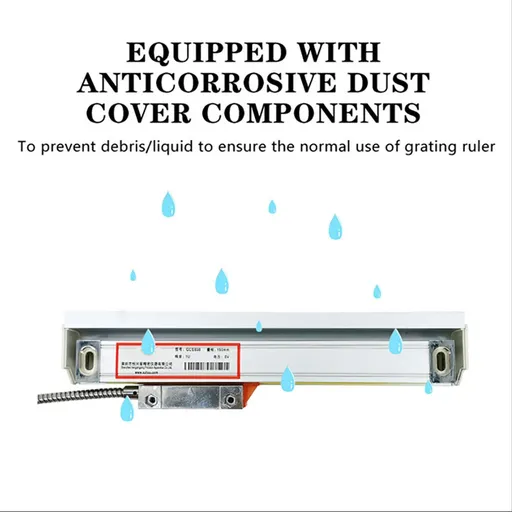

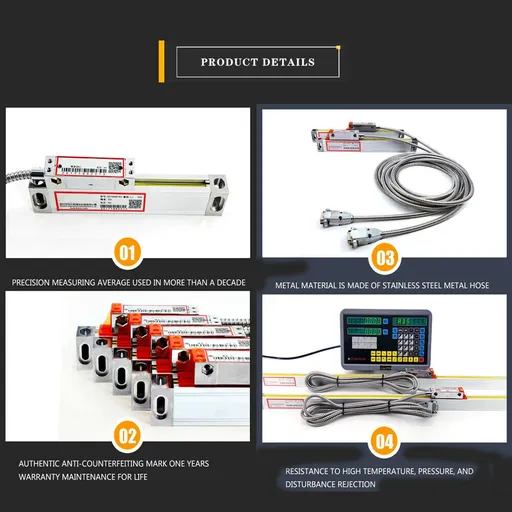

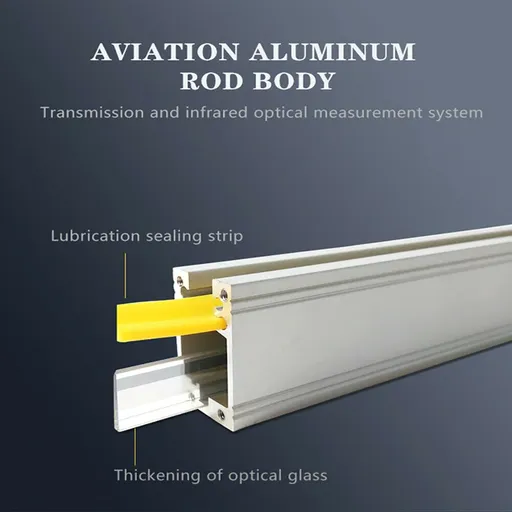

Linear Glass Scales Features
- High Precision linear scale
- Resolution: 5um (0.005mm) 0.0002"
- Signa#: TTL square /wave EIA-442
- Grating pitch: 0.02mm (50LP/min)
- Accuracy: ± 0.005 mm or 0.0002" (at 20 deg C)
- Reference marks at intervals of 50mm
- Response Speed: 60m/min or 40ins/sec
- Cable length: 3 Meters

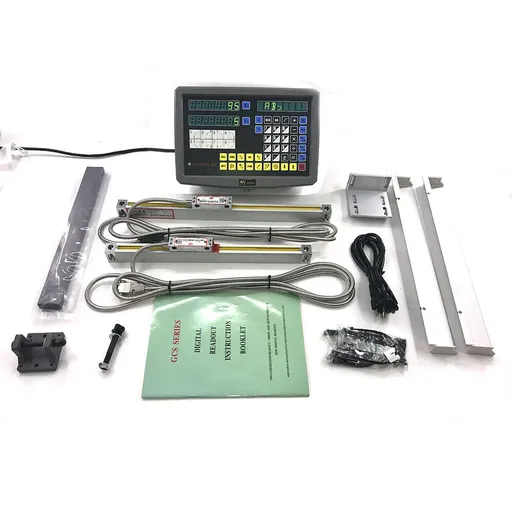

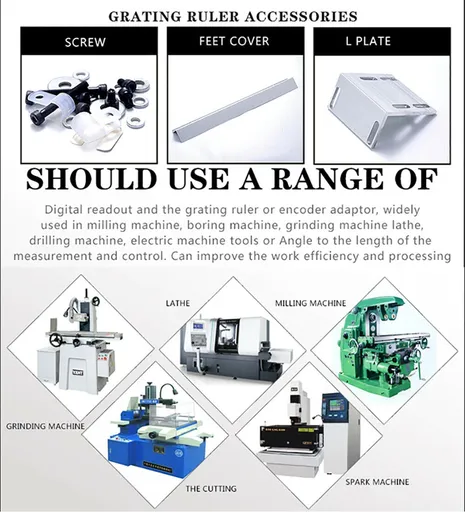

2 Axis Digital Readout Scale Kit Package Included:
- 1* Digital Readout
- 2* Linear Scale (100,150,200......1000mm for choose)
- Mounting accessories?
