Electric Coil Spiral Binding Machine 46 Holes Spiral Coil Book Binder w/100 Coil


119.99 119.99000000000001 USD 171.41


30% Off

Not Available For Sale


    This combination does not exist.

    • Ship From: US
    • Delivery: Shipping Handling Time 1 Business Day
    • Shipping: This item will charge an extra shipping fee to Remote Areas via USPS or UPS 2-5 Days Delivery Time
    Product Image

    Electric Coil Spiral Binding Machine 46 Holes Spiral Coil Book Binder w/100 Coil

    171.41 119.99
    30% Off


    • Labor-Saving and Efficient: Our coil binding machines are equipped with an electric coil Inserter, which can electronically insert plastic coils to bind books quickly and easily, saving a lot of working time and effort.

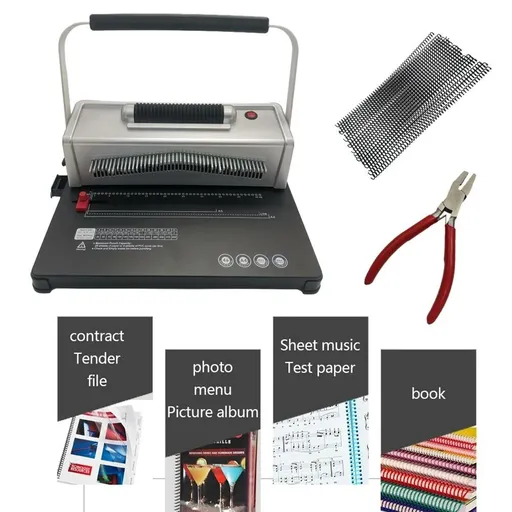

    • Full Book Binding Kits: In addition to a 46-hole binder machine, our spiral coil binding machine also includes 100pcs of 5/16'' black PVC coil spines kit and coil crimper pliers for no additional purchase.
    • Adjustable Punch Margin: There is a margin adjustment knob at the side of the paper binder. You can adjust the distance (3mm/0.12'', 5mm/0.2'', and 7mm/0.28'') between the hole and the paper edge. Add edge guides to ensure precise alignment with each document you bind for subsequent binding and neat documents.
    • Humanized Design: This upgraded coil binding machine has a sturdy handle, and when punching holes by hand, just apply steady pressure and can punch up to 20 sheets of 80gm paper at a time. When using coils, you can easily increase efficiency by inserting them manually or using a motorized coil inserter.
    • Wide Application: The spiral coil binding machine is suitable for hole punch binding of books, picture books, notebooks, copywriting, etc. Suitable for A4 / A5 size paper or Smaller Sizes. Can be widely used in printing shops, offices, schools, homes, and other places.

    Installation Steps

    • 1. Press the button on the side of the machine to adjust the margin to the right margin.
    • 2. Moving paper sizing guide to meet the punching needs of different size paper.
    • 3. Push the pin in or out as needed, and pull down the handle to punch holes.
    • 4. Confirm that the punching is complete.
    • 5. Coil around the hole 3-4 times.
    • 6. Press the scroll wheel switch.
    • 7. Put the coil into the machine for binding.
    • 8. Use pliers to cut and crimp the ends of the coil to complete the binding.


    • Material: Iron, ABS
    • Color: Black, white
    • Voltage: 110-240V
    • Plug: US Standard
    • Adjustable Margin: 3,5,7mm/0.11, 0.19, 0.27in
    • Maximum Capacity: 20 Sheets ( 80g Paper) Per Manual Punch
    • Maximum Binding Capacity: Arbitrary
    • Max. Binding Width: Below 300mm
    • Number of holes: 46 holes
    • Hole Distance: 6.35mm/0.25inch
    • Product Size: 17.1*13.2*8.1in
    • Weight: 6.5kg/14.33lbs
    • Package:

      • 1* Binding Machine

      • 1 *Coil Crimper Plier
      • 100* Binding Coils
      • 1* English Manual
