- 2 x Wireless Backup Camera: No Guide Line, unobstructed rear view. 18 IR LEDs for Night Vision, good performance day and night. Automatically switches to IR mode when the light level is low. Hard Metal Cased Camera, IP 67 Waterproof and Mudproof. It can last for longer without heating up, so you can show the rearview all time. Working temperature: -20℃-80℃

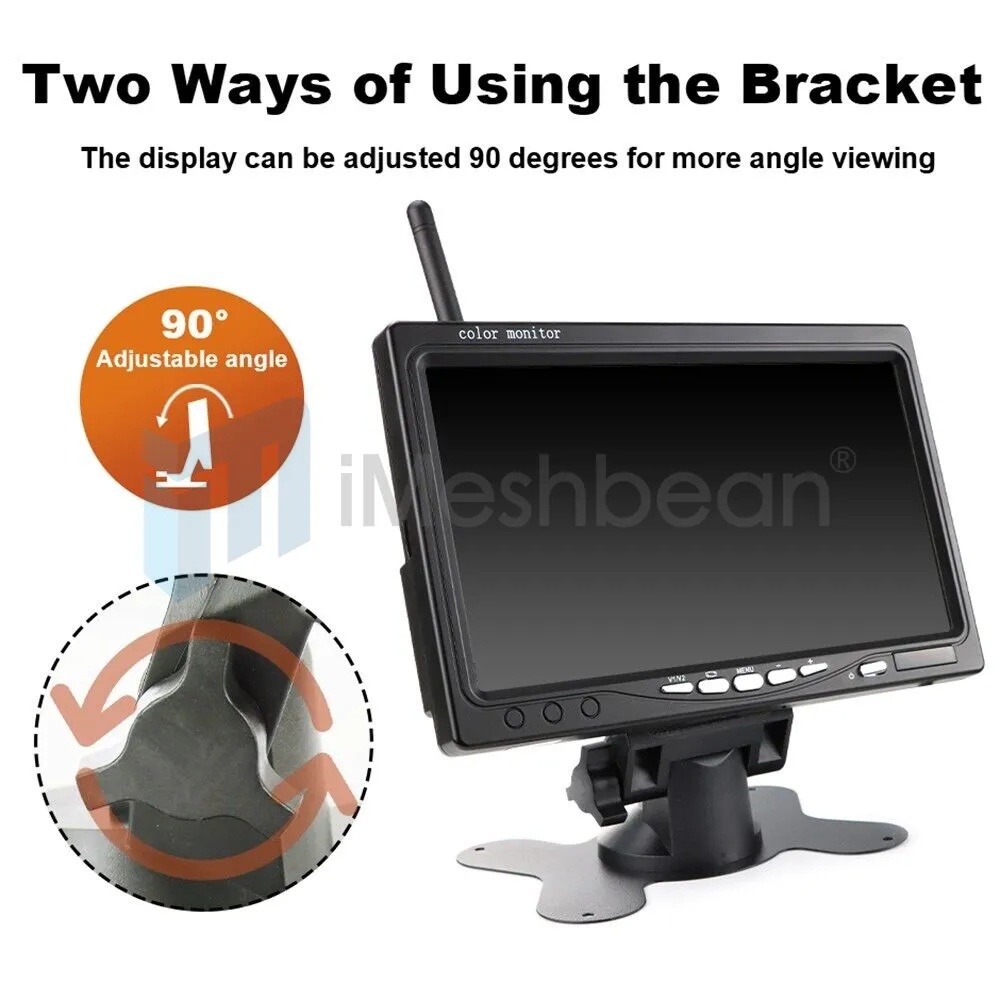

- 7-inch Wireless Rear View Monitor: 7-Inch HD TFT LCD Widescreen Monitor with Built-in 2.4GHz Wireless Receiver. 2-channel video Input, large screen, sharp image. The image can be rotated to meet your different needs. Adjustable brightness, contrast, and color. Video 1 can be used to reverse and video 2 can be used to watch DVD / VCD / TV. Come with remote control and stand.
- Easy installation: Wireless parking assistance; The monitor will start up automatically, and synchronously display the video from the rearview camera when you're backing your car. Comes with a car charger to get the monitor powered by the car cigarette lighter. No need to wire it from the ACC, free from the troubles of disassembling and wiring. Also comes with power wires to meet different needs.
- Upgraded Wireless Rear View Camera and Monitor Kit: Support Voltage Range From DC 12-24V DC Power, perfect for a wide variety of large Vehicles, especially suit for Trucks/ RVs/ Trailers/ Bus/ Harvester/ Pickup/ Motor Home/ Van, etc.
- Monitor: 7-inch color monitor
- Resolution: 800*480
- System: PAL/NTSC auto
- Resolution: 800*480
- Power: DC9V-24V
- Power consumption: about 6W
- Video: 2 video inputs
- Rearview pictures: Can be overturned by the buttons of Up / Down / Left / Right
- Remote control: All functions can be operated by remote control or buttons on the device
- 2.4GHz Digital Wireless Backup camera: Night vision Backup camera, 2pcs
- White balance: Auto white balance
- Specification: Lens: F = 2.15mm F4.05; TV Line: 480; Image Sensor: 1/3 "SONY CCD
- IP67 waterproof, shockproof, high temperature and high humidity resistance
- View angle: 120 degrees
- Operating voltage: 9V-24V
- Video Output: Composite video cable
All in one Kit
- Default working time for each reversing: 45 seconds
- Digital signal transfer is stable & reliable;
- Transmission distance: 50ft
- Antennas are embedded in to monitor and camera plate.
Anti-interference & Stable Image
- The 2.4G wireless digital frequency hopping technology prevents it from other wireless signal interference, like Radio, Bluetooth, Cellphones, and Thunder, ensuring a stable image without flickers.
With 2 Video Input
- Video 1 can be used to reverse
- Video 2 can be used to watch DVD / VCD / TV / GPS
Durable&IP67 Backup Camera
- Auto Water-Proof Camera Lens, with 18 individual Infrared (IR) LEDs. It helps your view still clearly at night or in bad weather.
- 120¡ãwide degree viewing angle, No Guide Line, Smart Activation
- 2.4 GHz Digital signal transfer, stable & reliable.
- Put the antennas on the camera and monitor
- Connect the monitor to the car charger tightly. Then Plug the car charger directly into the Cigarette lighter
- Connect the camera with the power cable, then connect the power cable to the reverse light (Red port to positive, Black to Negative)
- Please turn off FM radio, wifi, or other electronic product to avoid signal interference.
- Please press the 1st button on the monitor or press video select on the remote to AV2 which works for the wireless camera.
- There are 2 channels for the cameras:2510(with guidelines for reversing) and 2570(without guidelines for monitoring). Please switch each by pressing the 2nd button on the monitor or pressing model Select on remote
- For maximum signal point the antennas toward each other
- Keep the monitor and camera at least a distance of 2 meters(about 78.7"). or the camera and monitor will interfere with each other
- The IR camera has night vision, it will turn red when the light is low
