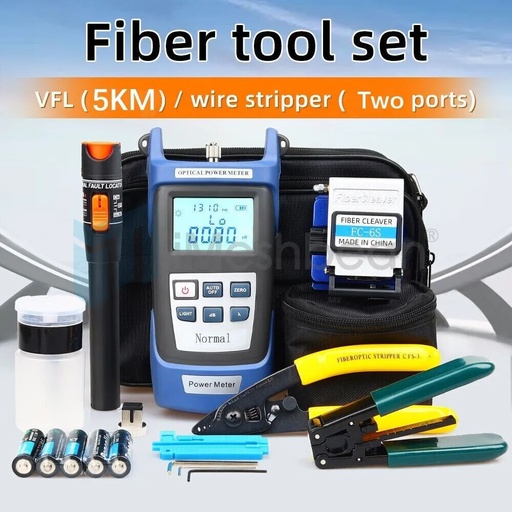

Fiber Optic FTTH Tool Kit FC-6S Cutter Cleaver Optical Power Meter Visual CFS-3

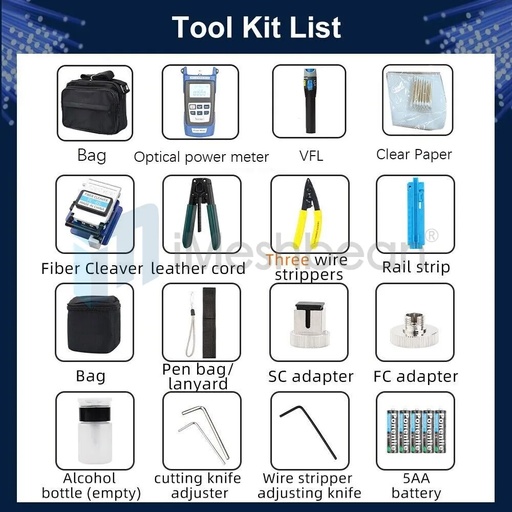

Package includes:

• 1 x Fiber Cleaver FC-6S
• 1 x Optical Power Meter -70 to +3dBm
• 1 x 1mw Visual Fault Locator
• 1 x Drop Cable Stripper

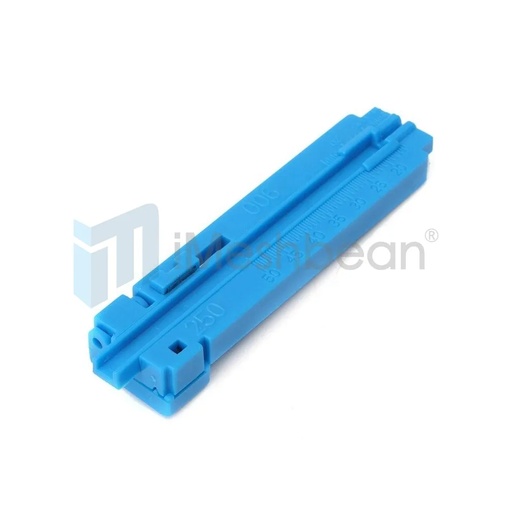

• 1 x Fixed-Length Stripper

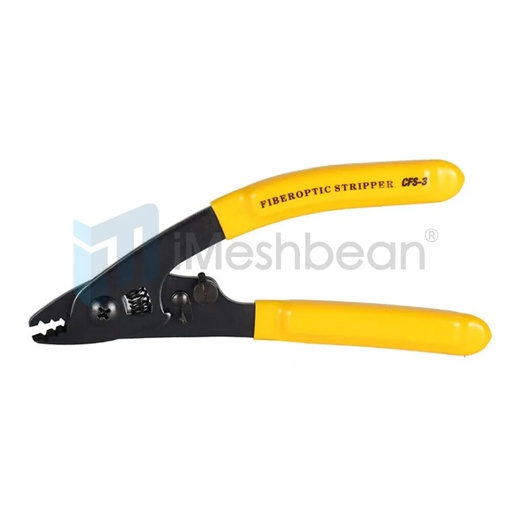

• 1 x CFS-3 Fiber Optic Stripper

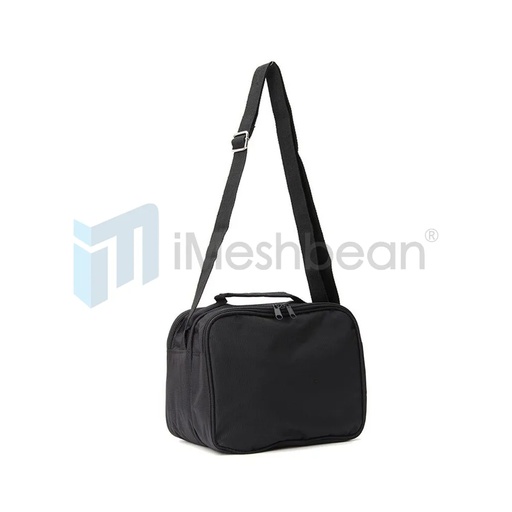

• 1 x Tool kit Carrying Bag
• 1 x 2 pc Allen adjustable tools
• 1 x Alcohol bottle
• 1 x Visual fault locator carrying bag
• 1 x Optical power meter sc adapter
• 1 x Fiber cleaver bag

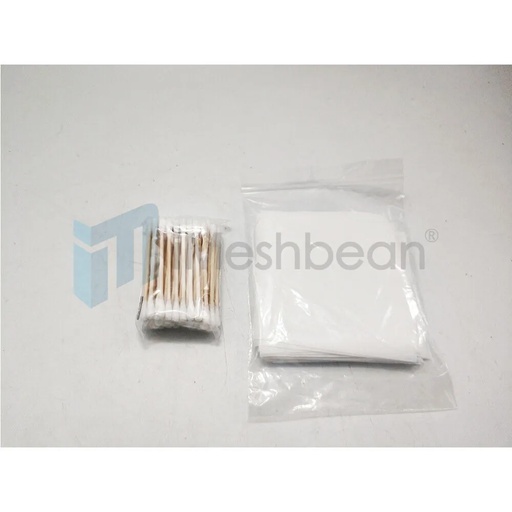

• 1 bag paper
• 1 bag cotton swab
• 5PC Batteries needed including

Specifications:

• Test Range: -70~+3dbm
• Probe Type: InGaAs
• Wavelength Range: 800~1700nm
• Standard Wavelength (nn): 850/980/1300/1310/1490/1550/1625
• Display Resolution: Linear Display 0.1%; Logarithmic display 0.01dBm
• Working Temp (℃): -10~+60℃
• Storage Temp (℃): -25~+70℃
• Auto Switch-off Time(min): 18min
• Battery working period: ≥ 48hrs
• Size(mm): 162x75x27
• Power: 3x AA rechargeable lithium battery or chargeable Li-battery (battery included)
• Power:1mw

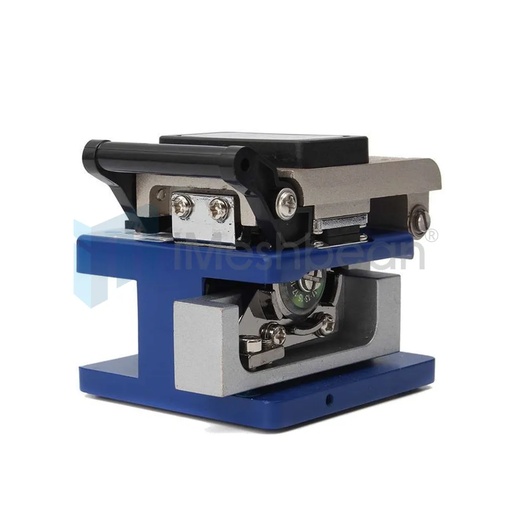

for FC 6S cutter Specification:

• Applicable bare wire diameter: 125 μm
• Applicable fiber core number: single core φ 0.25 & 0.9mm) ~ 12 core ribbon core wire ~ 2.5 skin line
• Fiber cutting length: 9-16mm ( φ 0.25), 10-16mm (0.9mm)
• Size: 63 * 76 * 63mm

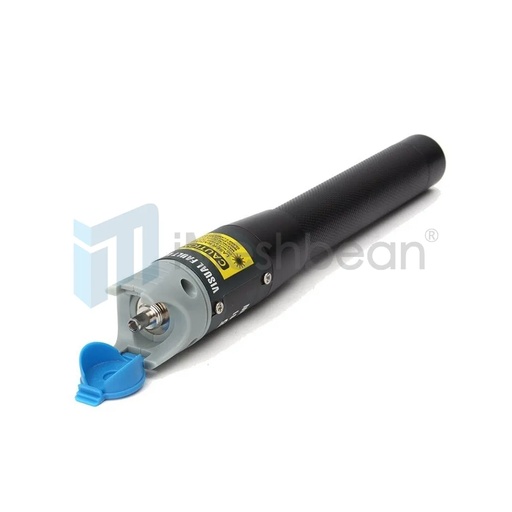

Visual Fault Locator Specification:

• Output wavelength:650mm
• Output light power: >1mW
• Optical connector: universal connector
• Operating temperature: 0~+60℃

• Storage temperature:  -20~+70℃
• Power supply: 2 x AA batteries(battery included)
• Size: 175mm*26mm

Feature:

• Self calibration
• More than 48 hours of continuous working time
• Linear Display (mW) and Logarithmic display (dBm) show on the same screen
• Support for FC/SC/ST interface and quick switch
• Auto switch
• Backlight available
