Pressure Power Washer Pump 24mm Solid Shaft 3600 PSI 4.0 GPM 10 HP Belt Drive

https://www.imeshbean.com/web/image/product.template/257/image_1920?unique=1f0a963

$ 219.99 219.99 USD $ 338.45

$ 338.45

35% Off

Not Available For Sale

Days
:
Hours
:
Mins
:
Secs

    This combination does not exist.

    • Ship From: US
    • Delivery: Shipping Handling Time 1 Business Day
    • Shipping: This item will charge an extra shipping fee to Remote Areas via USPS or UPS 2-5 Days Delivery Time
    Qty:
    In Stock
    Product Image
  • Pressure Washers

    • Pressure Power Washer Pump 24mm Solid Shaft 3600 PSI 4.0 GPM 10 HP Belt Drive

    $ 338.45 $ 219.99
    35% Off
    Add to Cart Buy Now
    Contact Us

    Need help?

    Contact our product expert

    Specifications:

    • Match engine power: 9.9 HP
    • Work pressure: ≤3600PSI/250Bar
    • Flow rate: 13-15LPM/3.5-4.0GPM
    • Power: Max 7.4KW (Require at least 5.5KW engine)
    • Engine speed: 1450 RPM

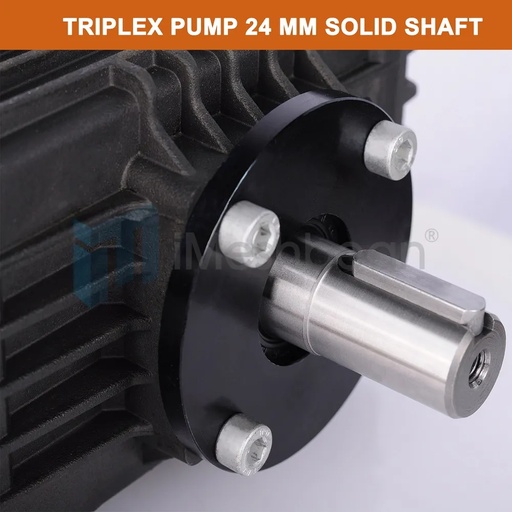

    • Solid shaft: 24 mm
    • Pump plunger bore: 18 mm
    • Inlet: 3/4” NH thread
    • Outlet: 3/8” quick connect(19mm)
    • Net Weight: 22 lbs

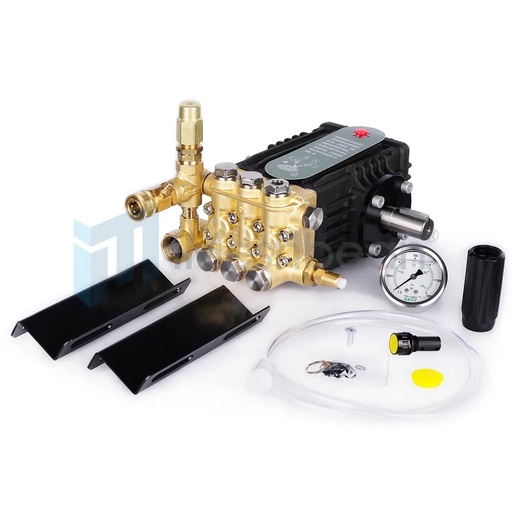

    • Package included: 1xreplacement Pump,1xpressure guage,1xset of extra O-rings,2xinstalling rails-brackets,1xdetergent tube
    • Certificate: CE, ISO9001, CCC

    ATTENTION:

    • 1. This Pump is ONLY for Engines with 24mm Solid shafts!
    • 2. Install the unloader & pressure gauge onto the pump before use.

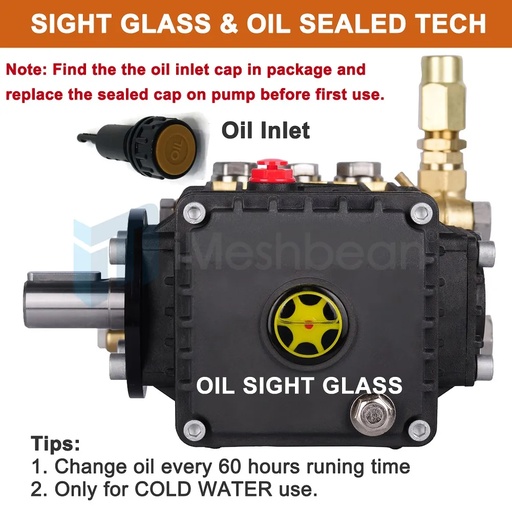

    • 3. These pumps ship with oil, replace the oil inlet cap with a hole (in the package) before first use, then avoid pump damage. The original one on the pump is sealed in case of oil leakage in transit.
    • 4. When installing, you can use the rails-brackets in the package or your existing frame rails(Both may need modification); Please allow water to flow freely through the pump until all air is out of the lines before firing the pressure washer up!

    Features

    • 3,600 psi at 4.0GPM(15LPM), 9.9 HP (Max 7.4 KW) at 1,450 rpm, 24 mm solid shaft, horizontal mount belt-drive, keyway, 3/4-inch standard garden hose inlet, 3/8-inch quick-connect outlet, 60°C (140°F) max. inlet water temperature
    • Replacement pump kit with compatibility for belt-driven gas engine setups and hollow shaft electric motors made for 24 mm diameter shafts. These 24mm solid shaft pumps work with both gas-powered engines and electric-powered motors from brands like Canpump, Nicolini & C, Comet, Honda, Annovi Reverberi, RIDGID, Blackmax, Generac, Husky, Excell, Troy-Bilt, Sears, Briggs & Stratton, Campbell Hausfeld and more.

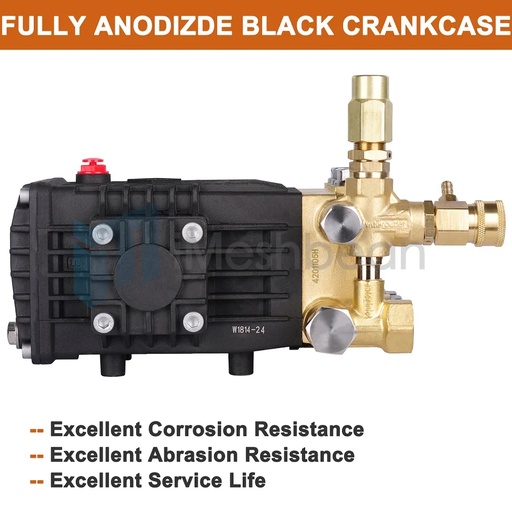

    • Forged brass and anodized aluminum construction with cooling fins, for protection against corrosion; Durable 18 mm ceramic-coated solid stainless steel pistons deliver extended seal life; Dual oversized radial ball bearings are installed for better wear and friction resistance. Strengthened one-piece alloy aluminum connecting rod.

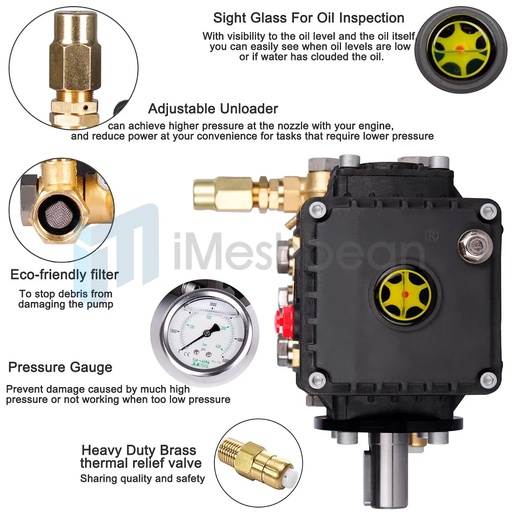

    • Fully detachable and pressure-adjustable internal bypass unloader valve with ergonomic control, detergent injector, and built-in water filter; Triplex plunger pump mechanism; Thermal relief protection to prevent the pump overheating; Sight glass for oil inspection.

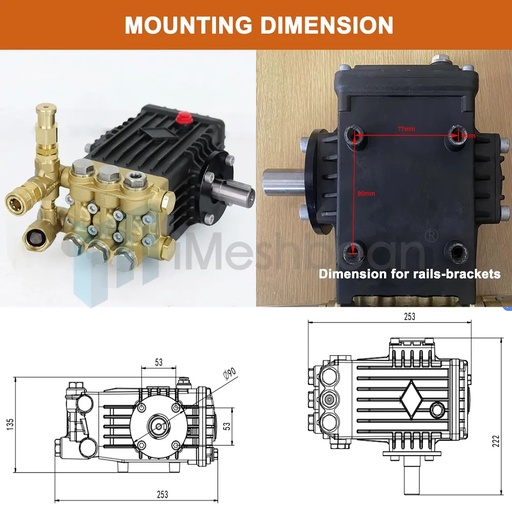

    • Easy Installation: This replacement pump features a garden hose inlet and QC quick-connect high-pressure hose outlet. Each kit includes a detergent tube with filter, pressure gauge, mounting bolts, and installing rails-brackets to get your machine back in action as quickly as possible. (*Check your pressure washer's inlet and outlet orientation, and mounting dimension to ensure compatibility)
