1HP In/Above Ground Swimming Pool Pump Motor Strainer Hayward Replacement 110V US
Description
- High Quality Material: The pump is constructed with longevity in mind and employs extensive use of corrosion-proof materials for durability.
- 2HP Electric Motor: The swimming pool features powerful super-efficient IP55 750W 1HP Electric Motor. Suitable for pools up to 8000 liters.
- Stable Performance: Advanced S-Tek Flow System For Increased Efficiency With Continuous Flow Rate Of 560L/min. The fine filter basket ensures debris does not enter the pump, ensuring trouble-free operation and extended life of filter sand.
- Safety Protection: The self-priming automatic pump has a built-in thermal protector and provides automatic pressure protection. Long-life pump with quiet operation and no leak.
- Wide Application: The new swimming pool can keep you maintain a crystal clear and sparkling pool or SPA. It is an energy-efficient filtration pump for your swimming pool and sparkling pool.

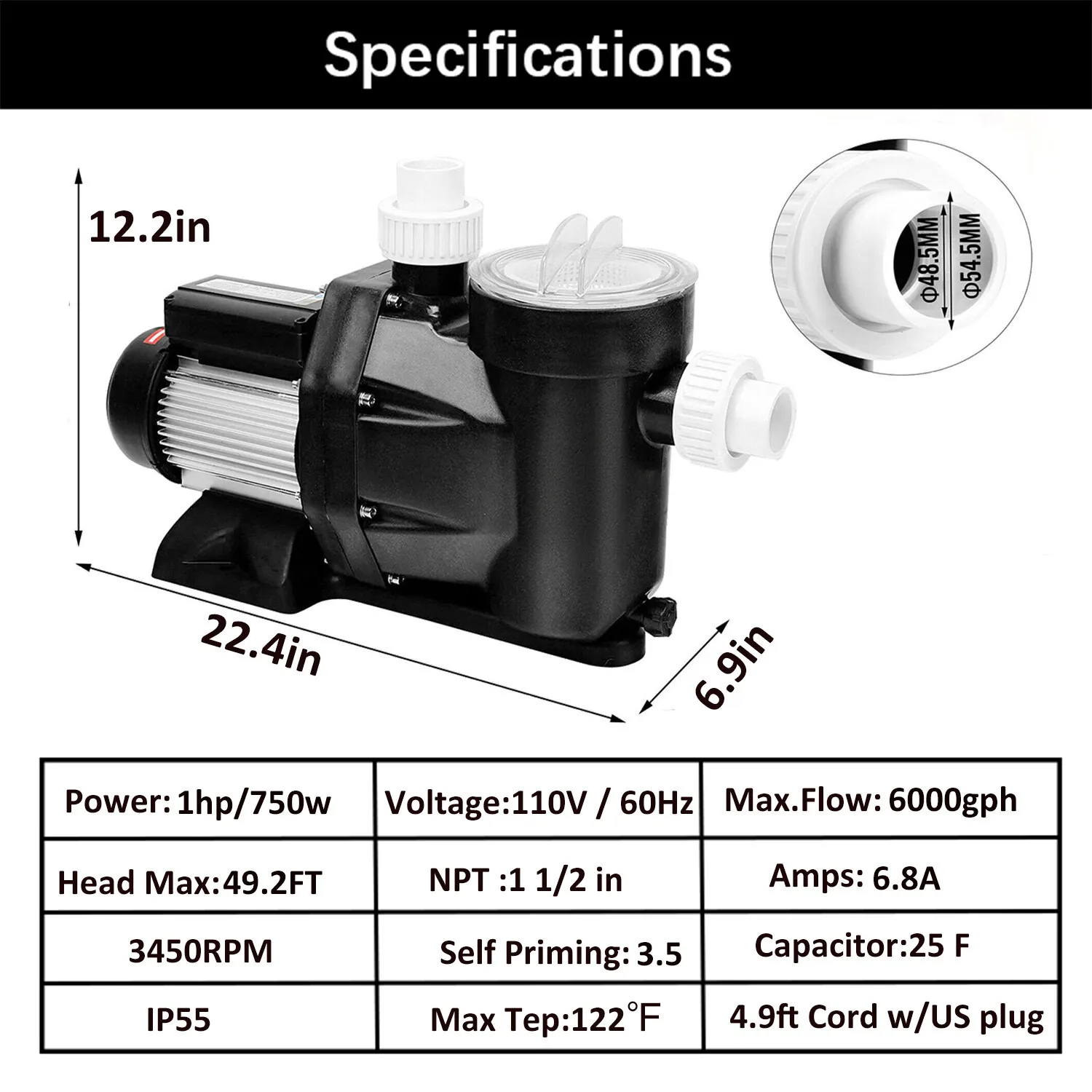

1 HP Swimming Pool Pump Specification
- Power:750W/1HP
- Voltage:110V / 60Hz
- Max. Flow:380 L/m
- IP55 INS CL.F:Max. 50 C
- Head:Max :15m/49.2FT
- Amp:6.8A
- Capacitor:25 F
- Inlet:1.5'' Internal
- Outlet:1.5'' Internal
- Pipe Compatibility:Fit 1.5 inch plumbing internally
- Noise Level:<65dB
- Weight: 21 lbs
- Power cord:1.5m/59inch

iMeshbean Swimming Pool Pump Package Including:
- 1 x Pool Pump
- 2 x 1.5in NPT connectors
- 1 x User manual
How To Use
- Locate the pump as close as possible to the pool.
- The pump suction line should not be smaller than the pressure line. All piping must be airtight
- The threads on the pump must be sealed with Teflon Tape or Silicon when the pump unions are screwed on.
- The weight of the piping should be supported independently and not carried by the pump.
- Fill the pump tank with water before starting.
- High suction lifts, or long suction lines, require additional time and reduce the performance of the pump
- The water being pumped cools and lubricates the seal
- After the pump tank has been filled with water, and the motor started, allow a few moments for the pump to start delivering water.
