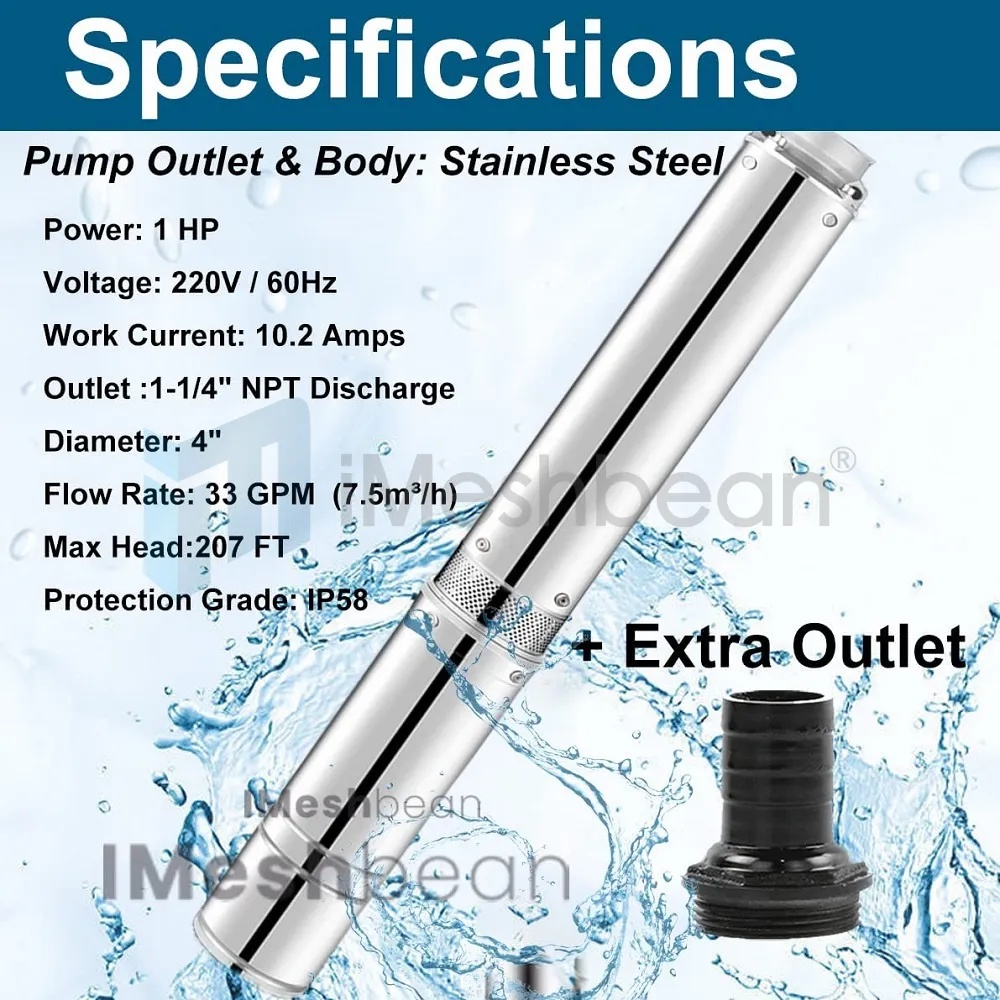

- 4",1HP, 230V, 5.1Amps , 60Hz,1-1/4” NPT discharge. 9 Impellers； Fits in a 4" casing. Full Stainless Steel
- Industrial grade heavy duty, also good for home usage
- Patented impeller & 7-stage design. 33 GPM max/207 ft head are comparable to 2HP pumps but use less electricity.
- 207 feet max head is for open water tanks. Refer to the Pump Selection Guide for the pressure tank applications.
- The patented impeller design provides extended pump life and heavy flow under worse circumstances.
- This pump lasts much longer than the all-plastic-bottom-suction pump, which weighs half of this pump (same HP).
- Water temperature: (32 ~113) Trans medium's Ph: 6.5~ 8.5

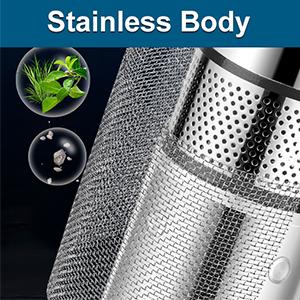

- Shell, motor shafts are made with stainless steel to ensure corrosion resistance. High-quality sealed ball bearings guarantee its excellent performance.
- The hermetically sealed motor has a built-in capacitor start, and thermal protection to prevent overheating, for longer life and a powerful start.
- Built-in control box. This pump DOES NOT require an external control box!
- This is a 2-wire pump with 3-Wire (2 wires + ground wire)
- 33FT/ 10M long electric cord comes with this submersible deep well pump.
- Heavy-duty thermoplastic impellers, diffusers, and intake screens.
- This pump has a built-in check valve.
- Unique design reduces its noise. Perfectly convenient for use at home and for factory usage; can be implemented in different types of wells-ash pipe wells, steel pipe wells, or soil wells; Can be used for extracting water from reservoirs, canals, rivers, open water tanks, and other water lifting works
1HP 220V w/304 Stainless Steel
- This stainless steel deep well pump features a built-in check valve and stainless steel material. As a result, our pump is highly corrosion-proof and rust-proof, providing you with an extended use time.
- Pure copper wire click, strong power, safe and durable1
- Copper wire coil,high Efficiency, better heat dissipation
- Providing you with efficient and stable pump work

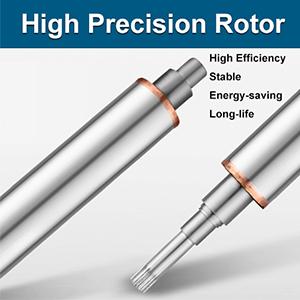

High-Quality Motor & Rotor
- High Efficiency
High Lift & Large Flow Rate
- Upgraded Impeller
- High Pressure-resistant
- Prolong Pump Life

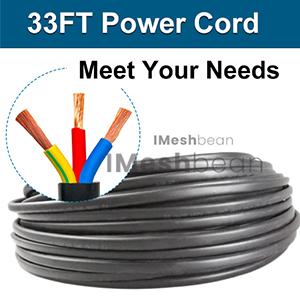

- 33 FT Power Cord
- 2 wire pump with 3-Wire (2 wires + ground wire)

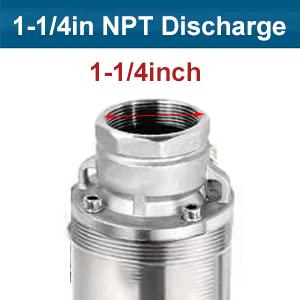

Coupling & Outlet
- Stainless Steel with electrophoretic paint.
- Easy to install and connect with the water pipe.
- 1 1/4inch NPT size
