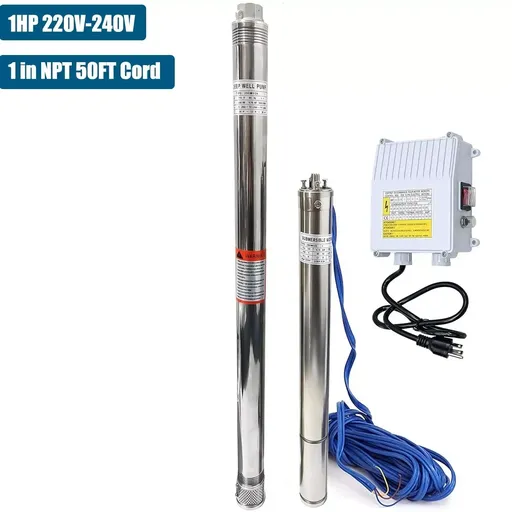

2.5" 1HP Deep Well Submersible Pump 220V 13 GPM 311FT Max 26 Stage 50FT Cord
Features
- 【Well Pump Technical Specifications】2.5",1HP, 220V, 10.2Amps ,60 Hz; 1" NPT discharge. Submersible Well Pump with External Control Box; 26 Impellers;Fits in a 3" or larger casing.

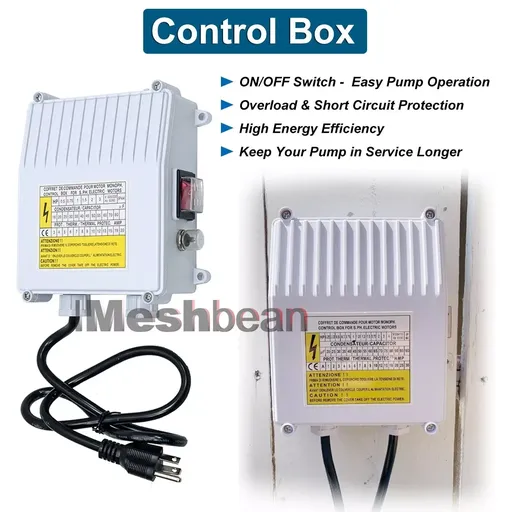

- 【Submersible Water Pump with External Control Box & Built-in Check Valve】This well pump is with a external control box,with ON/OFF switch for ease of use (★【NOTICE】This pump has a built in check valve. However installing additional check valve is recommended)

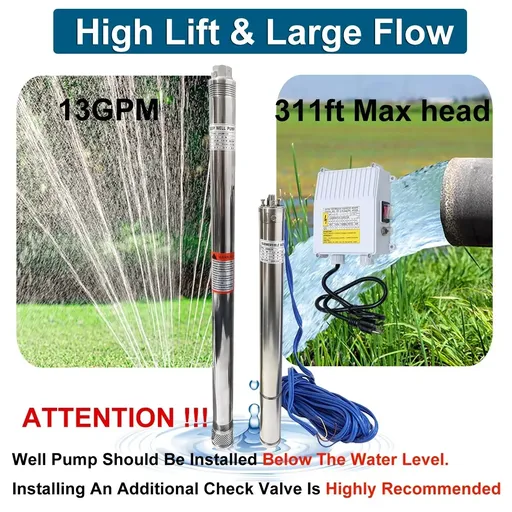

- 【Economy & Effective Deep Well Pump】This 220V deep well pump features 13GPM max flow & 311ft lift;50ft lengthy electric cord -allows for easy connection;built-in check vavle;built-in thermal protection;

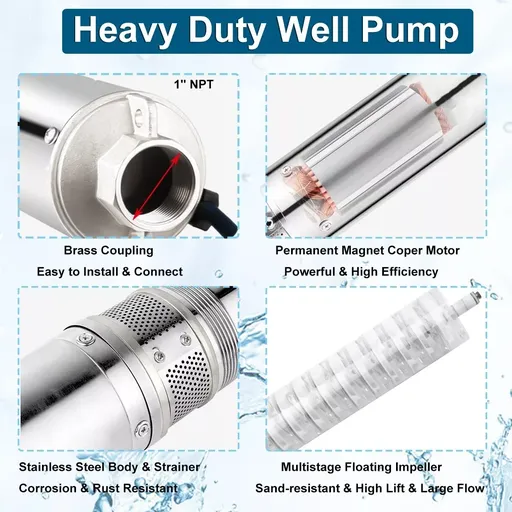

- 【Submersible Well Pump Outstanding Performance】This submersible pump for deep well features Stainless steel body & Stainless steel discharge head & permanent magnet motors& thermoplastic impellers -industrial grade heavy duty - guarantees high durability and long-lasting use;
- 【Wide Application Well Pumps】 This 2.5 inch well pump is perfectly convenient for use at home and for factory usage;can be implemented in different types of wells-ash pipe wells, steel pipe wells, or soil wells;Can be used for extracting water from reservoirs, canals, rivers, open water tanks and other water lifting works

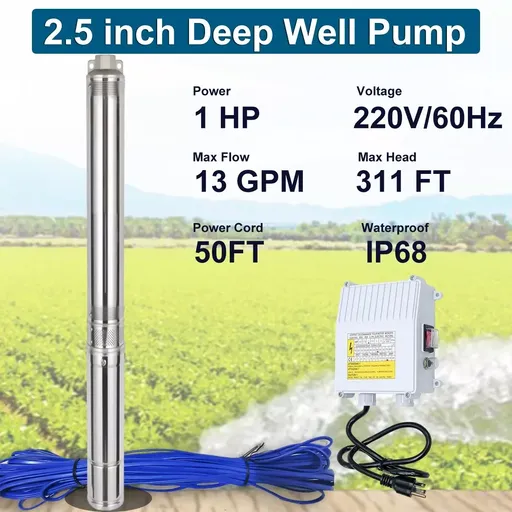

Specification
Motor: 1HP/0.75KW |
Voltage: 220V-240V/60Hz |
Max Flow: 13GPM |
Max Head: 311FT |

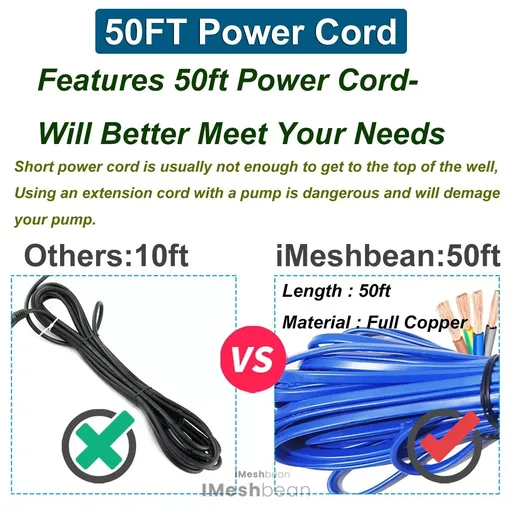

Power Cable: 50FT w/US plug |

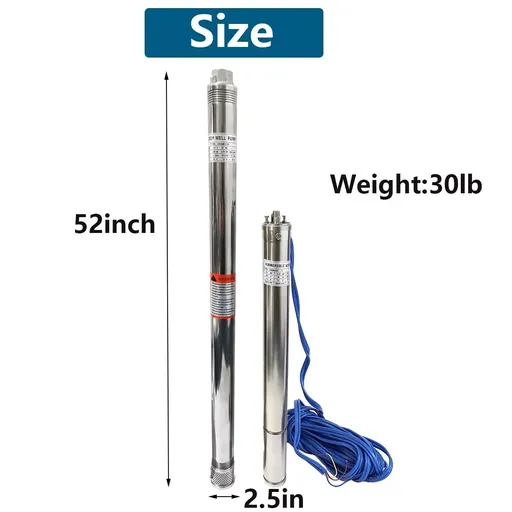

Pump Diameter: 2.5 in |
Amp: 10.2A |
Phase: Single |
Rev: 3420RPM |
Internal Thread Diameter: 1 " |
Material: 304 Stainless Steel |
Water temperature: 32 ~113℉ |
Maximun Sand Content:0.25% |

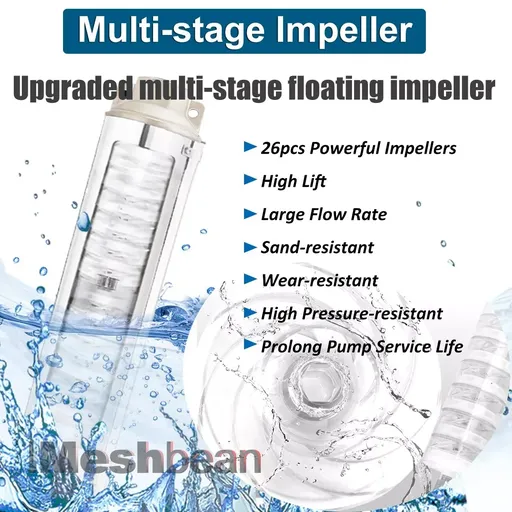

Number of Impeller:26 |
Protection Grade:IP58 |
Water PH:6.5-8.5 |
Package included:1X Deep Well Pump 1X50 FT Power cord 1XControl Box 1X English Manual |
