2 Axis Digital Readout+ Scale Kit For Milling Lathe Machine + Precision Linear

(2 reviews) 4.5 2

229.99 229.99 USD 328.56


30% Off

Not Available For Sale


    This combination does not exist.

    • Ship From:   US
    • Delivery:     Shipping Handling Time 1 Business Day
    • Shipping:     This item will charge an extra shipping fee to Remote Areas via USPS or UPS Fast shipping 2-5 Days

    Product Image

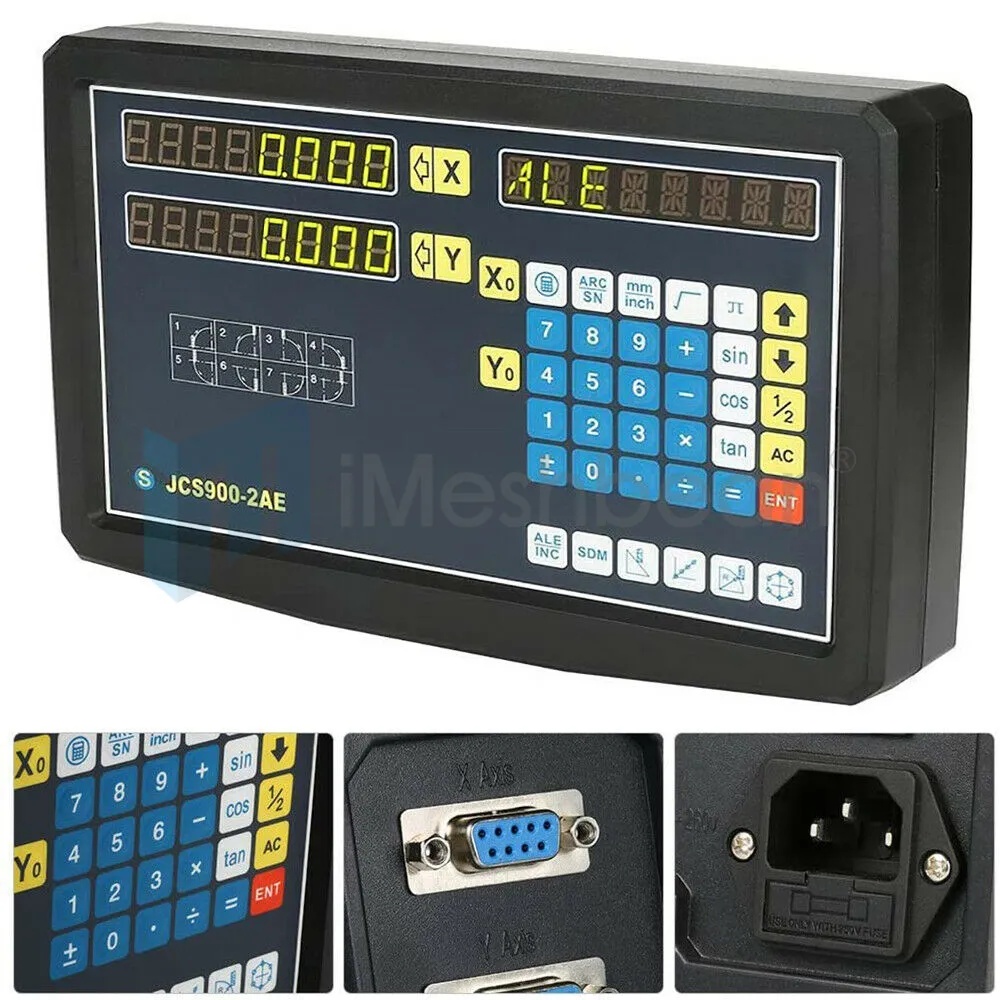

    2 Axis Digital Readout+ Scale Kit For Milling Lathe Machine + Precision Linear

    328.56 229.99
    30% Off

    • Payment security
    • 90-day return policy
    • Fast shipping 2-5 days
    iMeshbean The package includes 2 axis digital readout and 2pcs linear scale. Accuracy class of digital readout display is ¡À 1um; Accuracy of linear scale is ¡À0.005 mm or 0.0002". Perfect for lathe, grinding machine, milling machine, boring machine, and etc.


    • Please leave us a message for the scale length you need, and advise whether it is travel length or physical length!
    • We have 100mm(4") 150mm(6") 200mm (8") 250mm(10") 300mm (12") 350mm(14") 400mm(16") 450mm(18") 500mm(20") 550mm(22") 600mm(24") 650mm(26") 700mm(28") 750mm(30") 800mm(32") 850mm(34") 900mm(36") 950mm(38") 1000mm(40") scales in stock, Please leave us a note which size scales you need and advise whether they are travel length or actual physical length, or we will send you at random.
    • Please check the interface illustration carefully if the items are used on your existing or other intentional digital readout or scales, they may be unmatched.
    • Scale length refers to the real travel of the linear scale. The actual physical length is 141mm longer than travel. That is the total length=travel length+141mm. One inch equals 25.4mm. Please leave us a note of which size scales you need and advise whether they are travel length or actual physical length, or we will send you at random.
    • And we can ship the packages out in 1 business day if everything is confirmed.

    Main Features:

    • Application: lathe, grinding machine, milling machine, boring machine, and EMD to make the position detection.
    • The sliding part adopts the five-bearing system which has been proven to be the most reliable and durable. The main grating adopts a 90-degree assembly, which is more accurate and accurate.
    • The repeatability of the measurement is more stable.
    • The signal line adopts multi-layer isolation steel and metal soft shell protection, waterproof and anti-interference fine.
    • Ruler body with aluminum die-casting, hard chrome plating, corrosion-resistant.
    • Dust bar with special plastic, corrosion resistance, scratch resistance, and friction resistance.
    • Parts individual, installation, maintenance, easy maintenance, waterproof, dust-proof good, long service life.
    • The sensor uses a glass precision metrology grating as the measurement reference.
    • Multi-function, easy to operate, reliable, and durable, so that the necessary processing of mechanical products.

    Axis Digital Readout Specification

    Measuring travel0-3020mm
    Accuracy class± 1um
    Measurement standardsengraved glass grating
    Operating voltage5V ± 5% DC
    Working speed≤1m / S (1um)
    Acceleration≤ 60m / s
    Reference Operating Humidity≤ 90RH
    Grating pitch20um (0
    Measurement procedureIncremental
    Signal modeTTL
    Circuit characteristicsNPN
    Grating measurement systemtransmission infrared optical measurement system, infrared wavelength 940nm
    Scanning frequency ≤28kHz
    Anti-vibration50Hz-2KHz, ≤ 180m / s
    Impact16ms, ≤ 600m / s
    Displacement frictional resistance≤ 5N
    Protection classIP53 / IP64
    Signal electrical connectionindependent adapter cable (2.5M / 3 METER / 4M / 5M, ≤ 100M, can be connected to install the block)
    Applicable voltage100V-265V


    • The above parameters are measured in the ideal environment. There may be some differences in practical application.

    TTL Linear Scale

    • Physical length is different from the travel length 50/100,150,200,250,300,350,400,450,500, 550,600,650,700,750,800,850,900,950,1000mm 5um.
    • High Precision linear scale
    • Resolution: 5um (0.005mm) 0.0002”
    • Signal: TTL square /wave EIA-442
    • Grating pitch: 0.02mm (50LP/min)
    • Accuracy: ±0.005 mm or 0.0002" (at 20 deg C)
    • Reference marks at intervals of 50mm
    • Response Speed: 60m/min or 40ins/sec

    Package Included:

    • 1*2 Axis Digital Readout
    • 2*Llinear Scale (100,150,200......1000mm--travel length for choose)
    • Mounting accessories
