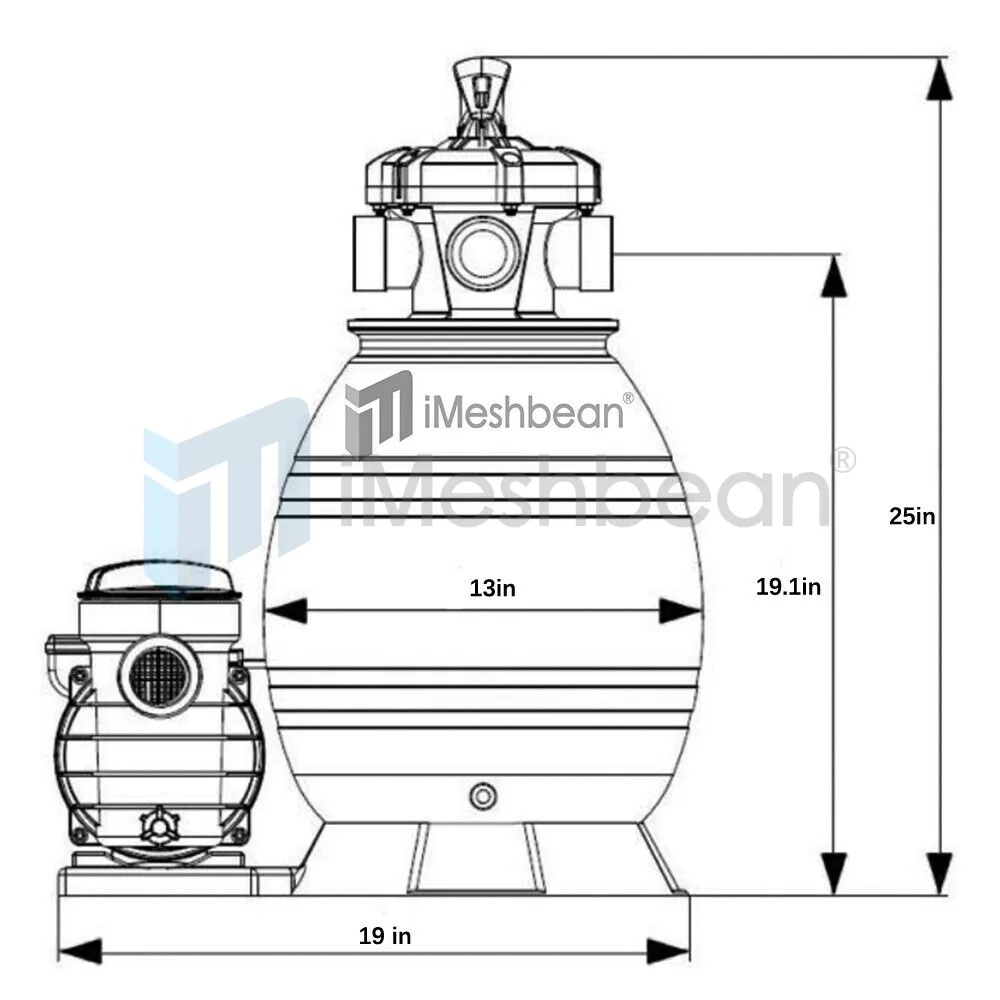

13 in Sand Filter Pump
- Model: FS-13D
- Brand: iMeshbean
- Turnover capacity: 15360Gallons
- Effective Filtration Area: 0.92 sq. Ft
- Filter Media: 45LB
- Flow Rate: 32GPM
- Pipe Size(Npt): 1 1/2inch / 1 1/4inch

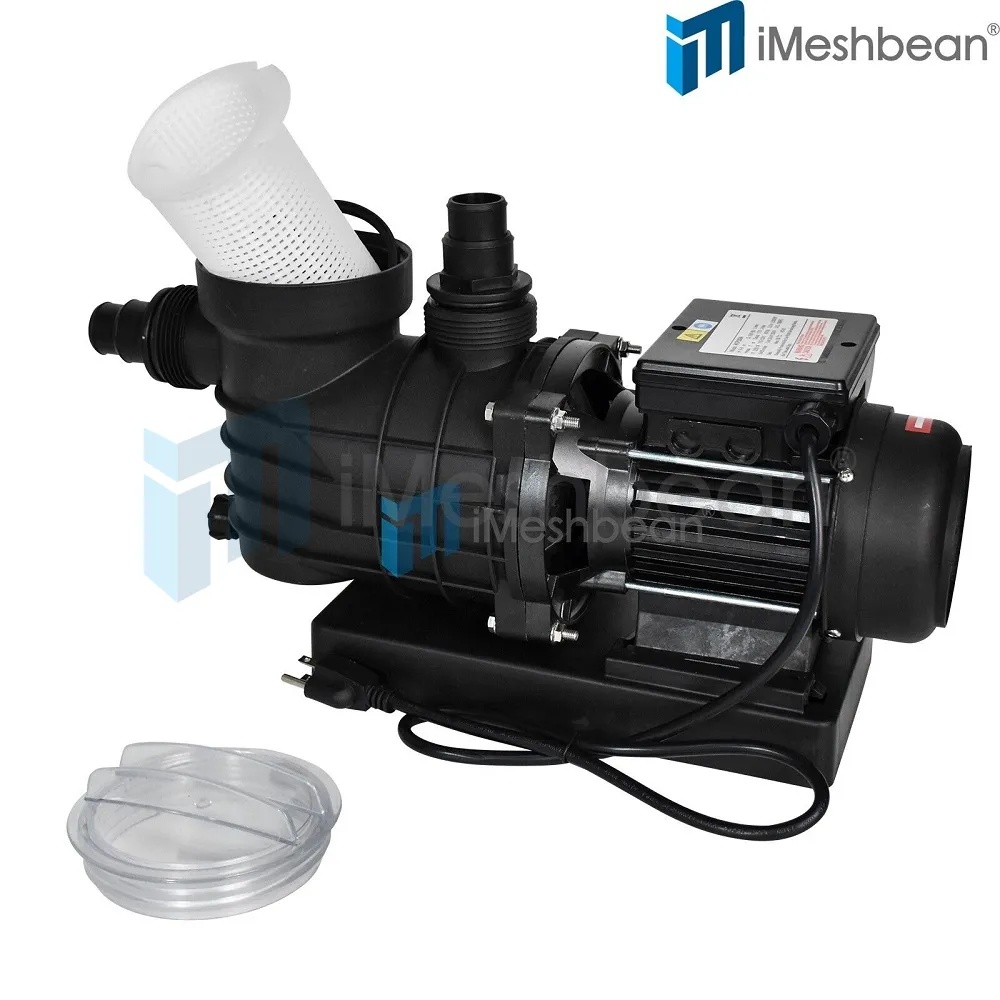

3/4 HP Pool PUMP
- Model: HCP-550
- Brand: iMeshbean
- Voltage: 110-120V
- Hertz: 60
- HP: 3/4HP 550W
- Amps: 5A
- Qmax: 210L/min
- Hmax: 31FT/9.5M
- RPM: 3450r/min
- Max Tem: 122 ℉
Note:
- Use standard #20 silica sand and Based on 8-hour turnover
Filter Key Features
- Extra-thick one-piece tank is blow molded of durable polymeric material with a UV-resistant surface assuring all-weather performance and long service life.
- Top mounted, clamp-style, 1.5" multiport valve with pressure gauge provides all necessary filter operations.
- Filter functions: 1. Filter 2. Waste 3. Closed 4. Backwash 5. Rinse
- 1-1/4" and 1-1/2" hose adapters included.
- Special internal design ensures the water is exposed to maximum sand surface area for efficient filtration and backwashing
Pump Key Features
- Durable corrosion-proof housing provides all-weather performance and ensures long life.
- High-performance motor with integrated thermal overload protector offers proven performance and quiet operation.
- Extra large strainer basket with see-through lid for easy inspection and cleaning.
Package included
- Sand Filter
- Pool Pump
- System Tray
- 5-way dial valve
- Hose Adapters
- 2pcs Pool Pump Connectors
- 2pcs Sand Filter Connectors
- Manual
