Filter Key Features
- Extra-thick one-piece tank is blow molded of durable polymeric material with UV-resistant surface assures all weather performance and long service life.

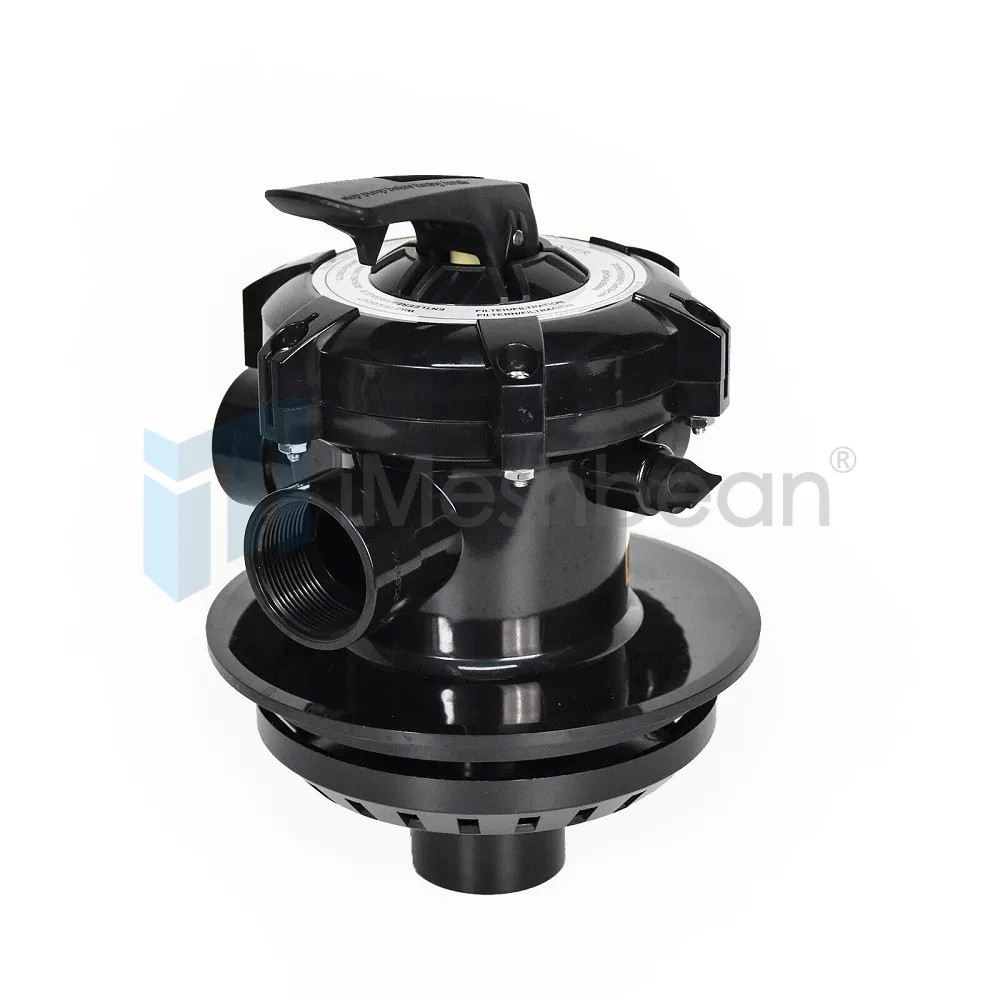

- Top mounted, clamp-style, 1.5" multiport valve with pressure gauge provides all necessary filter operations.
- Filter functions: 1. Filter 2. Waste 3. Closed 4. Backwash 5. Rinse
- 1-1/4" and 1-1/2" hose adapters included.
- Special internal design ensures the water is exposed to maximum sand surface area for efficient filtration and backwashing
Pump Key Features
- Durable corrosion-proof housing provides all-weatherperformance and ensures long life.
- High-performance motor with integrated thermal overload protector offers proven performance and quiet operation.
- Extra large strainer basket with see-through lid for easy inspection and cleaning.

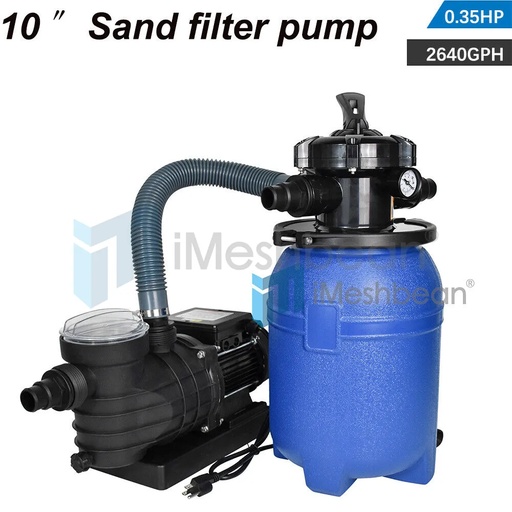

- Description: 10 in Sand Filter Pump
- Model: FS-10B
- Brand: iMeshbean
- Turnover Capacity: 12000Gallons
- Effective Filtration Area: 0.53 Sq. Ft
- Filter Media: 22LB
- Flow Rate: 25GPM
- Pipe Size(Npt): 1 1/2inch / 1 1/4inch
- Description: 0.35HP Pool PUMP
- Model: HCP-250
- Voltage: 110-120V
- Hertz: 60Hz
- HP: .35HP 250W
- Amps: 3A
- Qmax: 2853GPH
- Hmax: 23FT/7M
- RPM: 3450r/min
- Note: Use standard #20 silica sand Based on 8-hour turnover
- Sand Filter
- Pool Pump
- System Tray
- 5 way dial valve
- Hose Adapters
- 2pcs Pool Pump Connectors
- 2pcs Sand Filter Connectors
